| 8*5 ATM2000kg | 8*5 ATM3000kg | 10*5 ATM3500kg | 10*5 ATM4000kg | 10*6 ATM4000kg | |
| Trailer size | 4050mm*2050mm*1480mm | 4050mm*2050mm*1550mm | 4650mm*2050mm*1550mm | 4560mm*2030mm*1650mm | 4560mm*2330mm*1650mm |
| Towing rod | 70*50*3.75，1500long | 100*50*3.75 ，1500long | 120*60*4, 1500long | 120*60*3.75 1500long | 120*60*3.75 |
| Internal dimensions | 2440mm*1530mm*300mm | 2370mm*1520mm*300mm | 3045mm*1530mm*300mm | 3045mm*1530mm*300mm | 3045mm*1830mm*300mm+600mm |
| Surface treatment | spray painting | spray painting | spray painting | spray painting | spray painting |
| Color | Customizable as needed | Customizable as needed | Customizable as needed | Customizable as needed | Customizable as needed |
| Lamp | LED ADR | LED ADR | LED ADR | LED ADR | LED ADR |
| Axis | 45 square steel | 50 square steel | 60 square steel | 60 square steel | 60 square steel |
| Rated load capacity | 1250kg | 2050kg | 2320kg | 2780kg | 2830kg |
| Tare | 750kg | 950kg | 1140kg | 1220kg | 1170kg |
| Guide wheel | 8 inches | 8 inches | 8 inches | 10 inches | 10 inches |
| Fully welded | 50*50*3 | 100*50*3 80*40*3 | 100*50*3 80*40*3 | 120*60*4 | 120*60*4 |
| Patterned plate | 2.0 Pattern | 2.0 Pattern | 2.3 Pattern | 2.3 Pattern | 2.3 Pattern |

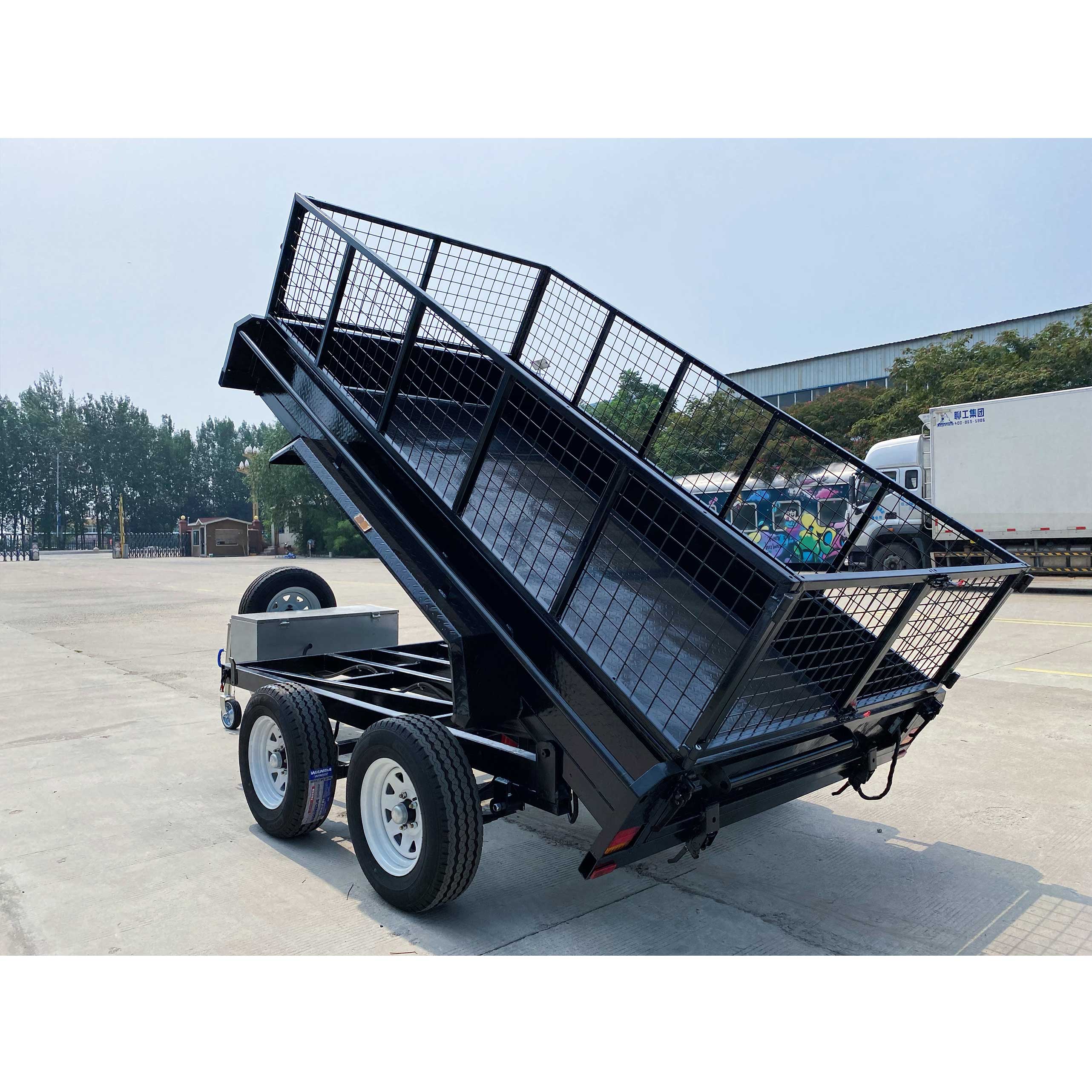

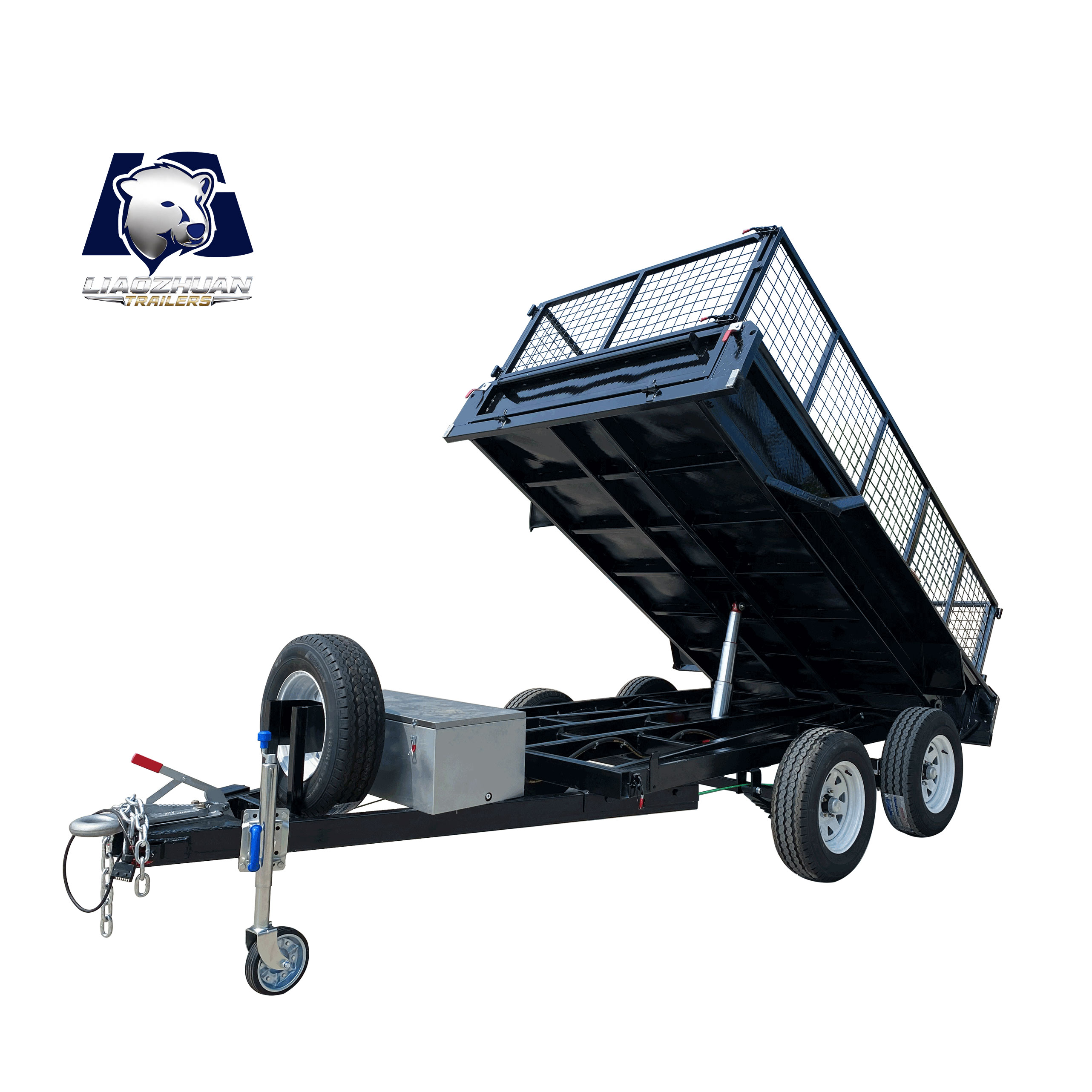

| Tilted body | 45° | 45° | 45° | 45° | 45° |
| Side | 2.0 Pattern | 2.0 Pattern | 2.3 Pattern | 2.3 Pattern | 2.3 Pattern |
| Cage | 30*30*3 mesh63*60*4 | 40*40*3 nmesh63*60*4 | 40*40*3 nmesh63*60*4 | 40*40*3 nmesh63*60*4 | 40*40*3 nmesh63*60*4 |
| Leaf spring | 5 pieces | 8 pieces | 8 pieces | 8 pieces | 8 pieces |
| Beam | 50*50*3 | 80*40*3 | 80*40*3 | 100*50*3 | 100*50*3 |
| Tire | 165 | 185 | 215 | 215 | 215 |
| Braking | Impact single brake | 10 inch dual electric brake | 12 inch dual electric brake | 12 inch dual electric brake | 12 inch dual electric brake |
